QXS
QXS SERIES LEATHER HANGING DRIER
MAIN CHARACTERISTICS

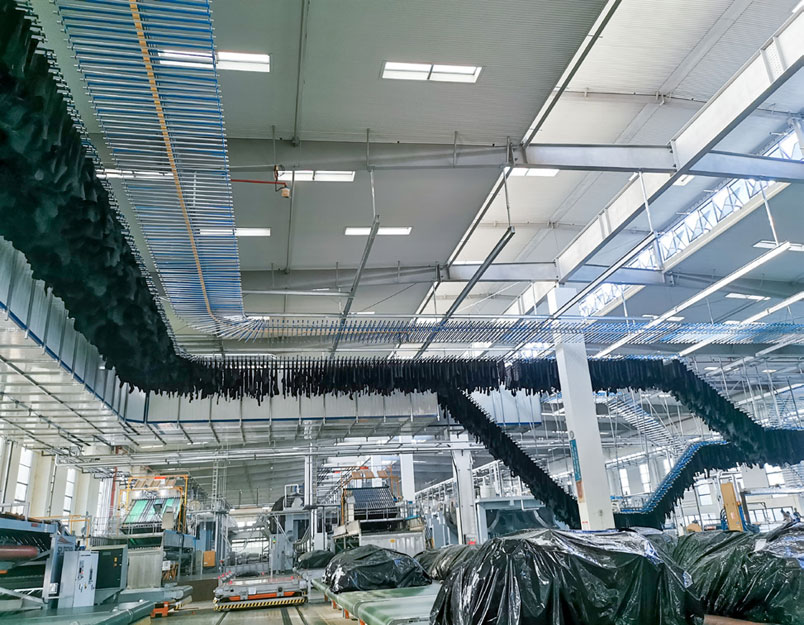

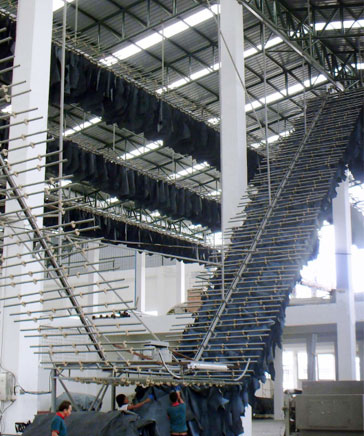

This is the high-hanging automatic conveying hanger drier by single machine applicable for drying various kinds of leather in natural condition.The biggest characteristic of this machine is that it can make full use of workshop space and after-heat of workshop to dry leather.As is dried in natural way(aided with low temperature when necessary),it can realize satisfactory drying effect and meanwhile save energy.
It is possible for frequency conversion speed regulation with easy operation and high degree of automation to make sure the low labor intensity but high production efficiency so that can realize assembly line production.
Hanging drier is divided into light type and heavy type.
MAIN TECHNICIAL PARAMETERS
1、Transmitting speed:0-10m/min
2、Speed regulation type:frequency conversion
3、Leather hanging:5---10 pieces of leather each meter.The interspace for each section is 400mm with 2----4 hanging rods
4、Theoretic loading capacity: Light type:30kg/lifting point; Heavy type：50kg/lifting point
5、Self weight of chain:Light type：4.5kg/m Heavy type：7.5kg/m
6、Self weight of rail:Light type：3.5kg/m Heavy type：6kg/m
7、Length of hanging rod:due to the the type of leather
|
